Maintenance Cost Factors Based on EOT Crane Types

Electric Overhead Traveling (EOT) cranes are vital assets in various industries, from manufacturing and warehousing to shipbuilding and heavy engineering. While performance, lifting capacity, and structural design often dominate purchasing decisions, maintenance costs are a critical factor that directly influences the Total Cost of Ownership (TCO) of EOT cranes. These costs vary significantly based on the type of EOT crane-whether it’s single girder, double girder, top running, under running, or customized for specific industrial applications.

In this article, we will explore the primary maintenance cost factors associated with different EOT crane types and how businesses can use this knowledge to make more informed, long-term investment decisions.

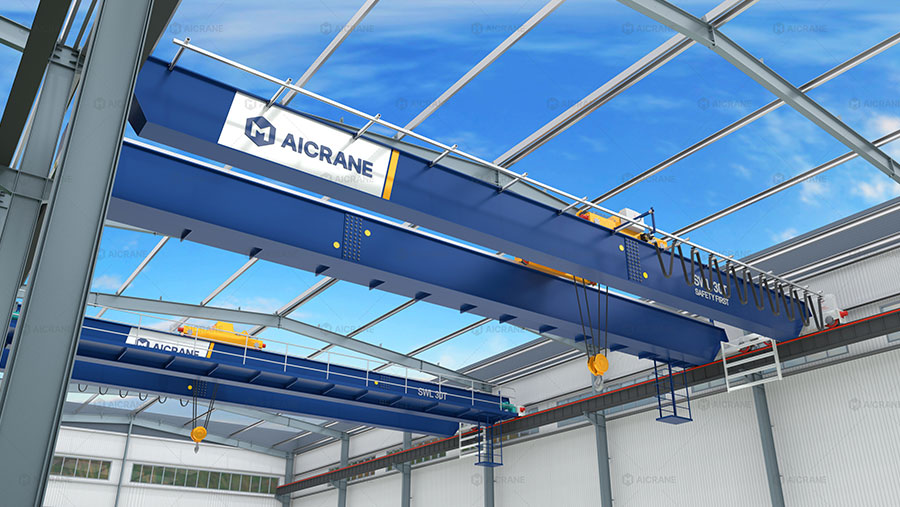

1. Overview of EOT Crane Types

Before diving into maintenance cost specifics, it’s essential to briefly understand the primary types of EOT cranes:

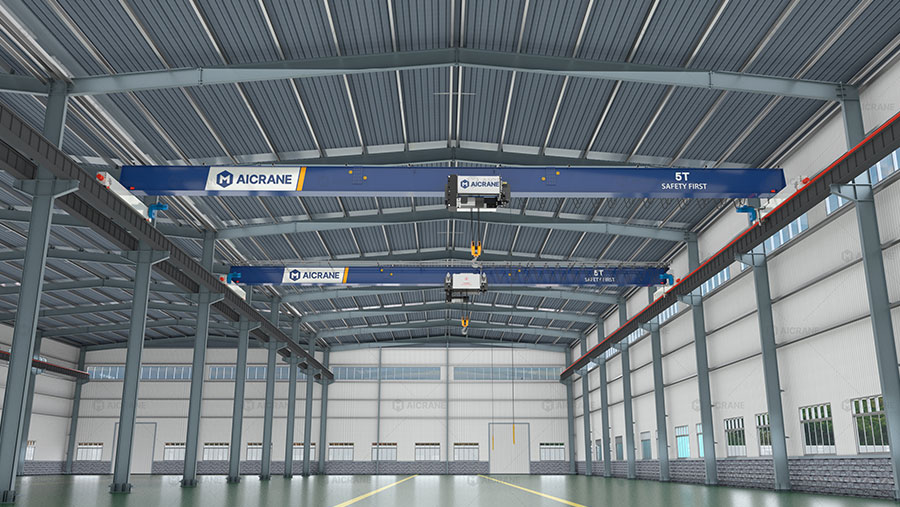

• Single Girder EOT Cranes: Feature one main bridge girder; typically used for light to medium loads.

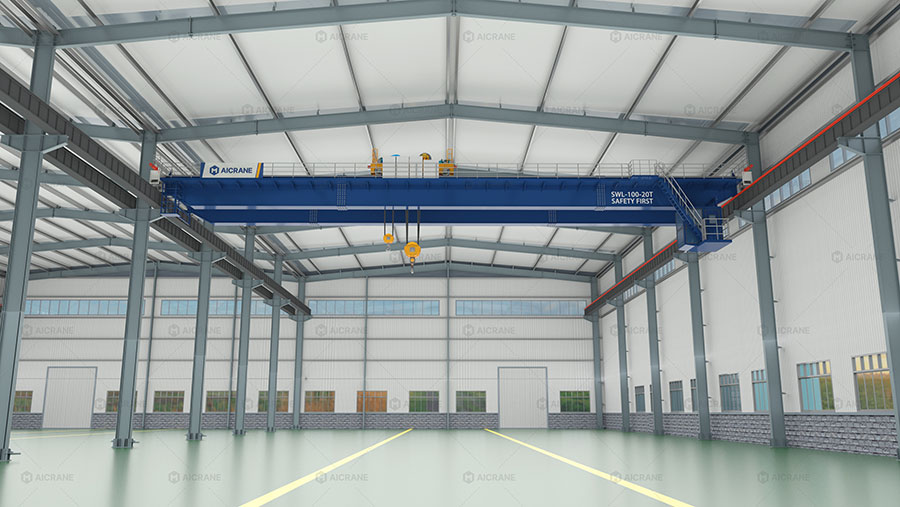

• Double Girder EOT Cranes: Include two bridge girders; suitable for heavy-duty applications and longer spans.

• Top Running Cranes: Run on rails mounted on top of the runway beams; ideal for heavy loads.

• Under Running (Underslung) Cranes: Suspended from the ceiling or roof structure; ideal for limited headroom applications.

Each type has unique characteristics that impact maintenance requirements and associated costs.

2. Structural Design and Component Wear

Single Girder vs Double Girder

• Single Girder Cranes usually have simpler structures, meaning fewer moving parts and joints. This often translates to lower routine inspection costs and fewer mechanical failures.

• Double Girder Cranes, on the other hand, are more complex and support higher load capacities, requiring more robust components. The additional girder and stronger end trucks increase inspection and component replacement costs.

Maintenance cost impact:

Double girder cranes can cost up to 30-50% more annually in structural maintenance due to increased component complexity and heavier wear on moving parts.

3. Lifting Mechanism and Frequency of Operation

The type of hoist and its duty cycle directly influence wear and tear:

• Standard hoists used in low-duty single girder cranes have longer service intervals, whereas high-duty hoists in double girder cranes often require frequent lubrication, adjustments, or part replacements.

• Cranes used in high-frequency operations (e.g., assembly lines) accumulate more operational hours, accelerating motor wear, gear deterioration, and brake pad erosion.

Key takeaway:

Choose a crane type and lifting mechanism that aligns with your operational duty class. Over-sizing or under-sizing can lead to avoidable maintenance expenses.

4. Rail and Wheel Maintenance

Top Running Cranes

• These cranes rely on rails fixed to runway beams, leading to significant wear on crane wheels and rails over time.

• Frequent operation under heavy loads may result in rail misalignment, cracks, or deformation, increasing repair and realignment costs.

Under Running Cranes

• While these cranes don’t experience the same level of rail wear, they can face issues with wheel misalignment and hanger wear, especially if the roof structure isn’t perfectly level or rigid.

Cost Comparison:

The top running cranes typically incur higher wheel and rail maintenance costs – up to 20-40% more over a 5-year period – compared to under running cranes.

5. Electrical System and Control Costs

Modern EOT cranes are equipped with VFDs (Variable Frequency Drives), limit switches, and remote-control systems, which offer operational flexibility but add to maintenance complexity.

• Double girder cranes usually have more electrical components due to dual hoists or advanced control systems, leading to increased diagnostic and repair costs.

• Single girder cranes with basic control setups are easier and cheaper to troubleshoot.

Tip for cost control:

Invest in cranes with self-diagnostic features and modular control systems to reduce service time and technician hours.

6. Brake Systems and Safety Devices

Brake maintenance frequency depends on crane load and duty cycle:

• Heavy-duty cranes require more frequent brake pad replacement and system recalibration to ensure safe stopping.

• Cranes equipped with emergency brakes, load limiters, or anti-collision systems may have higher upfront costs, but these features often reduce incident-related maintenance and downtime.

Cost trade-off:

While safety devices increase initial complexity, they can reduce long-term repair costs by preventing accidents and system overloads.

7. Environmental Factors

Maintenance costs also vary based on the operating environment of the EOT crane:

• Outdoor EOT cranes or cranes in corrosive environments (like chemical plants or marine yards) require frequent painting, rust-proofing, and seal replacement.

• Indoor cranes in clean environments (e.g., warehouses) enjoy lower maintenance overhead.

Recommendation:

Select a crane type with protective coatings and IP-rated electrical enclosures for harsh environments to lower long-term maintenance costs.

8. Ease of Inspection and Access

Crane types with easier access to components -like single girder cranes – tend to have lower inspection costs:

• Under running cranes suspended from roof beams may require scaffolding or lifts for inspection, adding to labor costs.

• Top running cranes are more accessible via catwalks or platforms, reducing time spent on maintenance tasks.

Maintenance efficiency tip:

Ensure your crane design includes maintenance walkways and inspection points to cut down on service time and associated costs.

9. Spare Parts Availability and Standardization

Certain crane types use standardized parts that are widely available, while custom-designed or imported systems may have longer lead times and higher part costs.

• European-style EOT cranes may use proprietary parts, leading to higher maintenance costs and longer downtime.

• Locally manufactured cranes with widely available components offer quicker, cheaper repairs.

Best practice:

Evaluate spare part supply chains during crane selection to avoid future maintenance bottlenecks.

10. Conclusion: Align Crane Type with Operational and Maintenance Needs

The total maintenance cost of an EOT crane depends on multiple factors—structural design, load capacity, frequency of use, environment, and ease of maintenance-all of which are influenced by the crane type.

By selecting the right crane type tailored to your operational requirements and understanding its maintenance profile, businesses can optimize productivity while controlling long-term costs.
